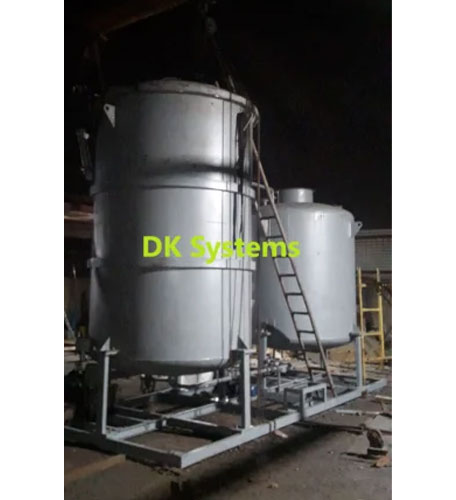

Automatic Vacuum Pressure Impregnation Plant

thumb
enquire-now whatsapp-now

The AC Traction Motor Vacuum Pressure Impregnation (VPI) Plant is designed to impregnate traction motor coils using H62 and FT 2005 resins under precise vacuum and pressure conditions. The plant ensures high-quality impregnation with heating and cooling arrangements for optimal resin curing.

Key Specifications

  • Main Tank Dimensions: Ø2400 mm x 1600 mm (Height)
  • Resin Storage Tanks:
    • 1200 L (H62 Resin)
    • 3200 L (FT 2005 Resin for Alternators)
  • Vacuum Capability: 0.01 Torr
  • Standards: Components comply with ISO and CE standards for quality and safety.
  • Control System: Fully automated PLC and HMI for process automation.

Operational Process Workflow & Coil Loading Process

  • System Initialization:
    • Ensure the system is powered on.
    • Perform a pre-check on vacuum pumps, heaters, and agitators.
    • Verify resin levels in the storage tanks.
  • Coil Loading:
    • Position coils on the designated job holder inside the main impregnation tank.
    • Securely close the tank lid using hydraulic/pneumatic actuation.
  • Vacuum and Degassing:
    • Activate the vacuum system to degas the resin and remove air from the coils.
    • Maintain the vacuum level at 0.01 Torr.
  • Impregnation:
    • Release resin from the storage tank into the impregnation tank.
    • Allow sufficient time for resin penetration into the coil windings under vacuum.
  • Heating and Cooling:
    • Start the heating process to cure the resin.
    • Once curing is complete, switch to the cooling cycle to stabilize the components.
  • Unloading:
    • Release vacuum and remove the impregnated coils.
    • Perform visual and quality checks on the coils.

Components with European Standards

  • Vacuum Pumps: Becker or Busch (ISO-certified, CE-compliant)
  • Resin Agitators: Siemens motor with VFD (IEC standards)
  • Control System: Siemens PLC & HMI
  • Temperature Sensors: E+H (European standards)
  • Pressure Gauges: WIKA
  • Heating Elements: Kanthal resistance heaters
  • Cooling System: Grundfos water pumps and chillers
  • Safety Valves: Spirax Sarco

System Initialization

  • Perform a system-wide diagnostic using the PLC interface.
  • Verify that all tank levels, vacuum readings, and temperature settings are within operational limits.
  • Ensure resin tanks are degassed and ready for operation.

Tank Selection

  • Resin H62: For AC Traction Motors.
  • Resin FT 2005: For Alternator applications.
  • Use the selector valve on the control panel to route the resin to the impregnation tank.

Applications

  • AC traction motors for railways and industrial vehicles.
  • Alternator coils for heavy-duty applications.

Safety Arrangements

  • Vacuum Safety: Overpressure relief valves.
  • Electrical Safety: MCBs, ELCBs, and overload protection.
  • Resin Handling: Closed-loop systems to minimize exposure.
  • Emergency Stop: Redundant shutdown system in case of malfunctions.
  • Tank Integrity: Periodic ultrasonic testing of tanks

Additional Information:

  • Item Code: VPI800
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
  • Production Capacity:10KL
  • Delivery Time: 60 DAY
  • Packaging Details: 1 BOX

Technical Specification

Title SPECIFICATIONS
Production Capacity10 kl
Vacuum Degree760mm Hg
Motor Power1hp to 10Hp
Tank Capacity8 KL
Voltage230 - 480V AC
Diameter2MTR
Frequency50-60Hz
Model NumberIND800VPI
Air Consumption5-8kg
MaterialMS & SS
Power Consumption5HP 440VAC 50Hz
ConditionNew
